30kn/M 50kn/M 100kn/M Polyester Geogrid Pet Geogrid For Soil Reinforcement

Informationen:

Polyester geogrid is a new kind of favorable earthwork base material to strength the road surface and roadbed, which composed of high strength polyester yarns coated with an inorganic sizing agent

Anfrage senden

Jetzt chatten

Download

Beschreibung

Technische Parameter

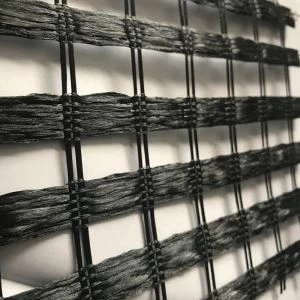

PVC Coated Polyester Uniaxial Geogrid

Polyester Geogrid adopts high strength, high modulus, and low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction. Then it forms into mesh size product after coated with high quality oil or water-soluble PVC which improves its strength, various technical standards and gives full play of its mechanical property.

Specification

Specification		Unit	50/50KN	80/80KN	100/100KN	150-150KN	600-600KN	800/800KN
Tensile Strength	Warp	KN/m	50	80	100	150	600	800
Tensile Strength	Weft	Weft	50	80	100	150	600	800
Elongation		percent	10	10	10	10	10	10
Grid Size		mm	12.712.7,25.425.4,4040
Roll Width		m	1-6
Roll Length		m	50-200

Package

Advantages:

Road construction.
Road repair.
Motorways, car parks, airport runways, access roads.
Roads extension.
Suitable for reinforcement of asphalt in heavy traffic areas.

Application:

1. enhance the bearing capacity fo road foundation and extend the duration of highway.

2. prevent highway surface from collapse, crack and being dirty.

3. be convenient for construction timesaving and cut down the cost of maintenance.

4. prevent tunel from crack occuring

5. further solidity slopes to proof water and soil from losses

6. reduce the surface thickness of the ground.

7. consolidate the net for growing grass on the slopes so as to stabilization surrounding virescence.

8. be used for artificial top net of mines instead of metal ones. It is of flame retardant and antistatics.
